Workstation for Test Benches and Actuators

All the Electronic Instrumentation necessary to command and control mono or multi-axial Test Benches is developed internally. We pay particular attention to the presentation of the various parameters on the monitor, since it is very important, particularly in those Benches devoted to Experimentation and Research.

Our Workstations allow to:

Our load generation systems are implemented in closed loop, that is, with active control of the loads.

All electrical/electronic connections with the outside are implemented with safety connectors and/or sheathed cables and Palazzoli connector for power supply from the electrical panel.

Single channel Workstation

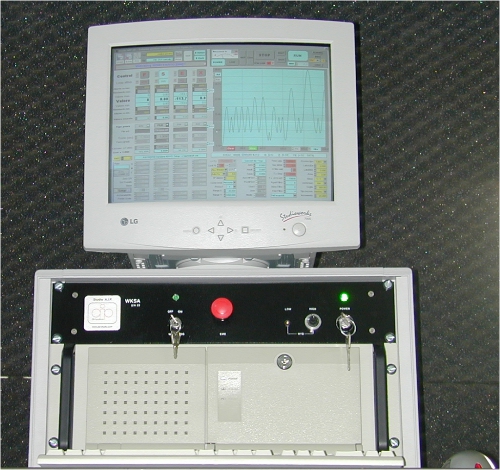

Single channel Workstation ‐ type A

This Electronic Instrumentation is designed to command and control one mono axial Test Bench. Its software runs in Windows environment and implements:

  • the generation of standard test sequences (e.g. sinusoidal, triangular, square, ramp). Others can be defined of various type, being programmable either through the GUI, or imported from external file
  • reading, storing, and processing of the signals, with dynamically costumizable plots (y/t, x/y, etc.)
  • the start, stop, and freeze of the Test
  • per-channel measurement of the peak values
  • the control of alarms set on critical signals, with customizable warn thresholds

The software is also designed to perform static, dynamic, block, and spectrum tests, with guided settings available to the operator.

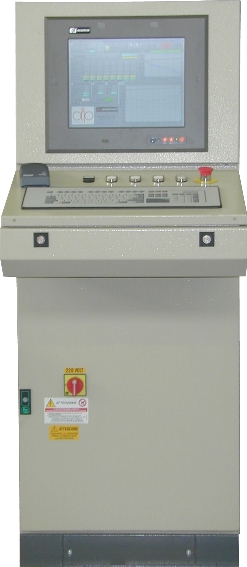

Command and Control pulpit
Command and Control pulpit for mono axial Test Bench
read more

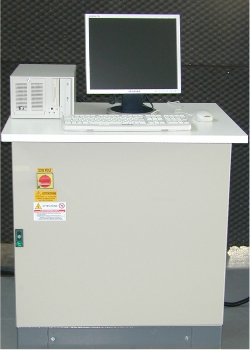

Pulpito e Main Computer

Multi channel Workstation ‐ type B

Modular Workstation, whose architecture can be extended in function of the specific application requirements. The basic module of WKS-B is a self-contained processing unit, specialized in the control of a servo-system of a Test Bench. The interconnection of multiple modules in a Rack is implemented via Ethernet Switch and the overall control is delegated to a control pulpit with Main Computer.

The WMC-B-n Workstations can therefore be connected in cascade to compose multiaxial systems of increasing complexity, in which the first WKS-B acts as the master for all the others.

WKS-B workstation module

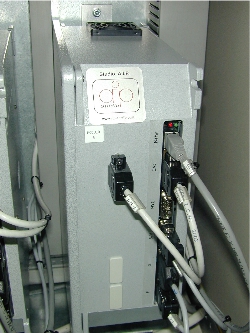

Single Workstation module of type WKS-B
6 interconnected WKS-B modules

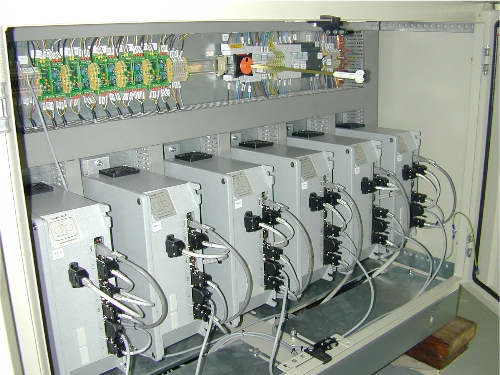

Internal view of a Workstation WMC-B-6 (with 6 interconnected WKS-B Modules)
read more
A Bench as depicted into the GUI

Control Software

We implement all the software needed to control the Workstation through a user friendly interface, in function of the number of channels to manage, the testing requirements, and the specific characteristics of the Test Bench.

A good visualization allows to be interactive with the Test Bench and to be able to make timely and safe interventions, both during the setting and during critical tests.

As shown below, we implement different display modes for multi-axial and mono-axial Benches.

Screenshot of the software application for controlling each axis

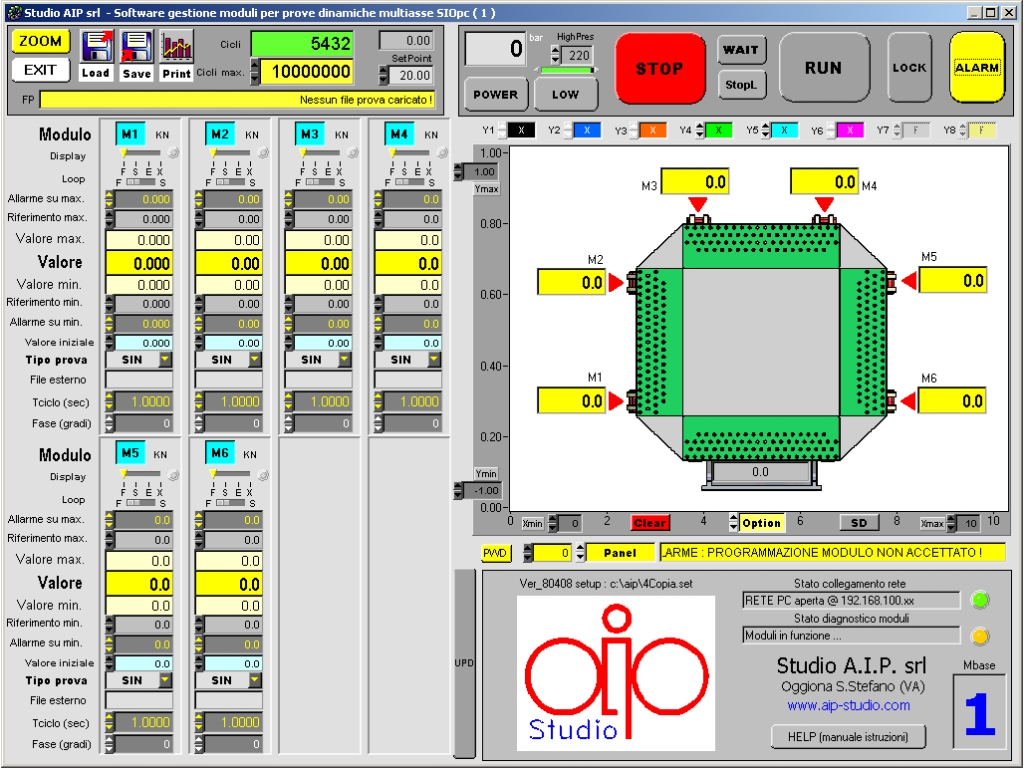

Test Bench for aeronautical panels (6 axes) - screenshots of the application to control each axis, with graphical representation of the Test Bench and its main configuration parameters. For a safe view of the test values trend, monitor readings are made evident and clear, being positioned on a figure conform to the Bench

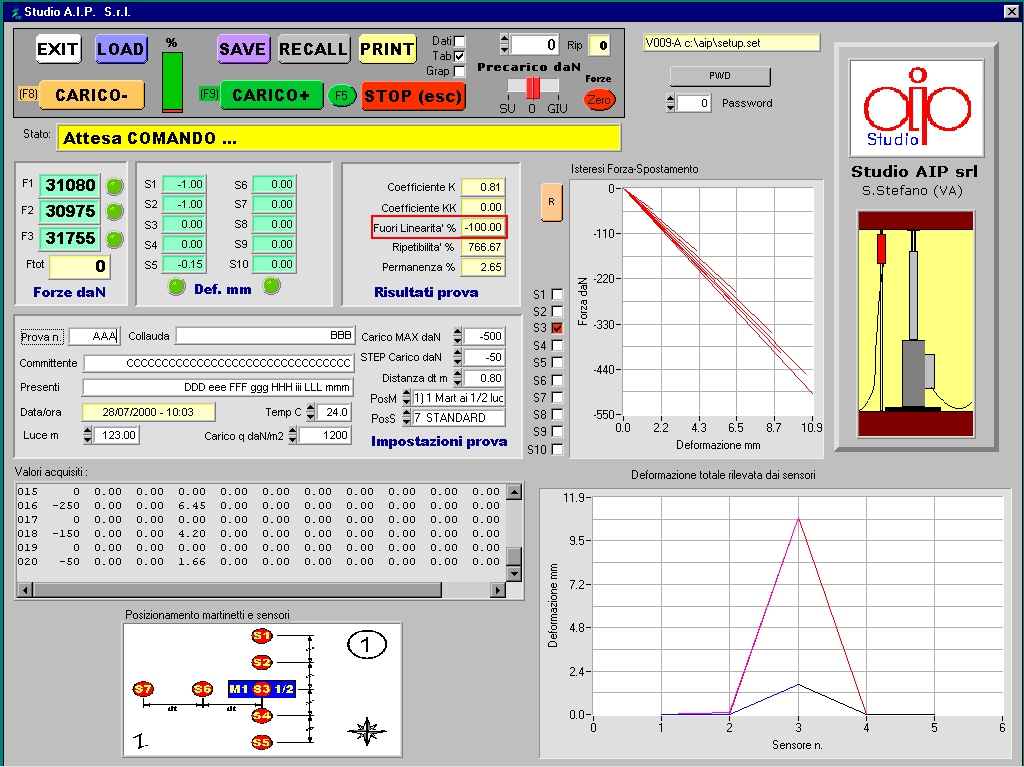

Screenshot figuring a graphical representation of the Bench
Transportable system for Structural Testing of insoles - screenshot of several possible tests with graphical representation of the Test Bench

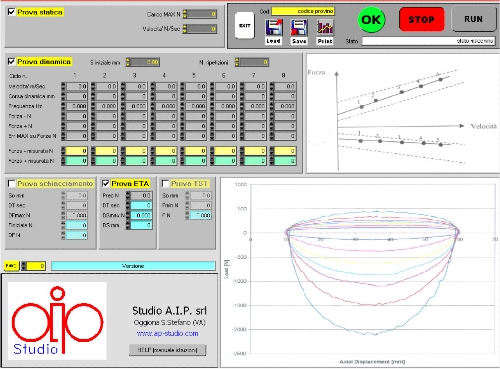

Screenshot of dynamic output plot
Test Bench for Shock Absorbers - screenshot of a typical Dynamic Test output. The sequence of dynamically applied loads and the resulting graph are shown

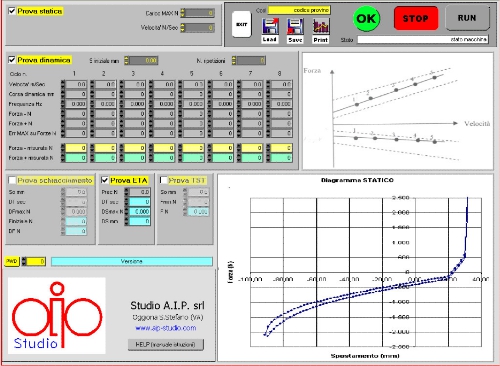

Screenshot of static output plot
Test Bench for Shock Absorbers - screenshot of a typical Static Test output
Screenshot of a test programming
Test Bench for Automotive Components - screenshot of the test programming window

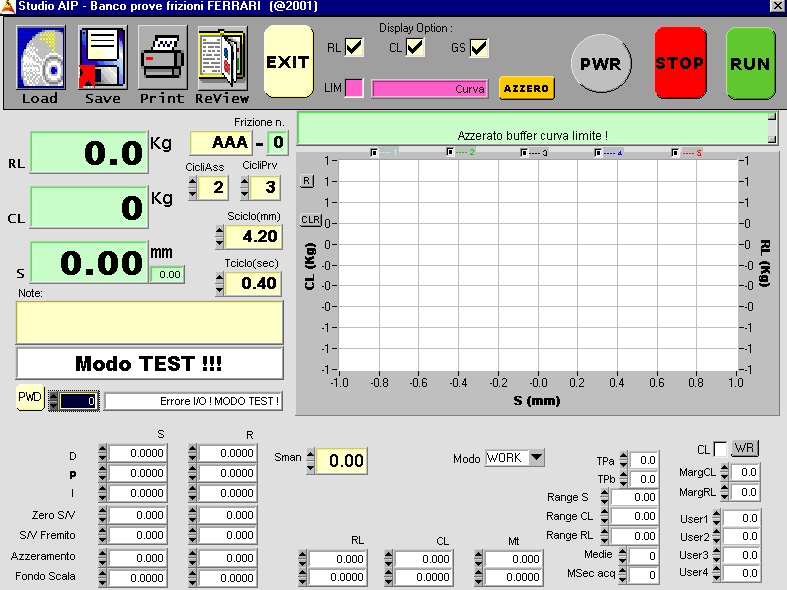

Screenshot of channel programming

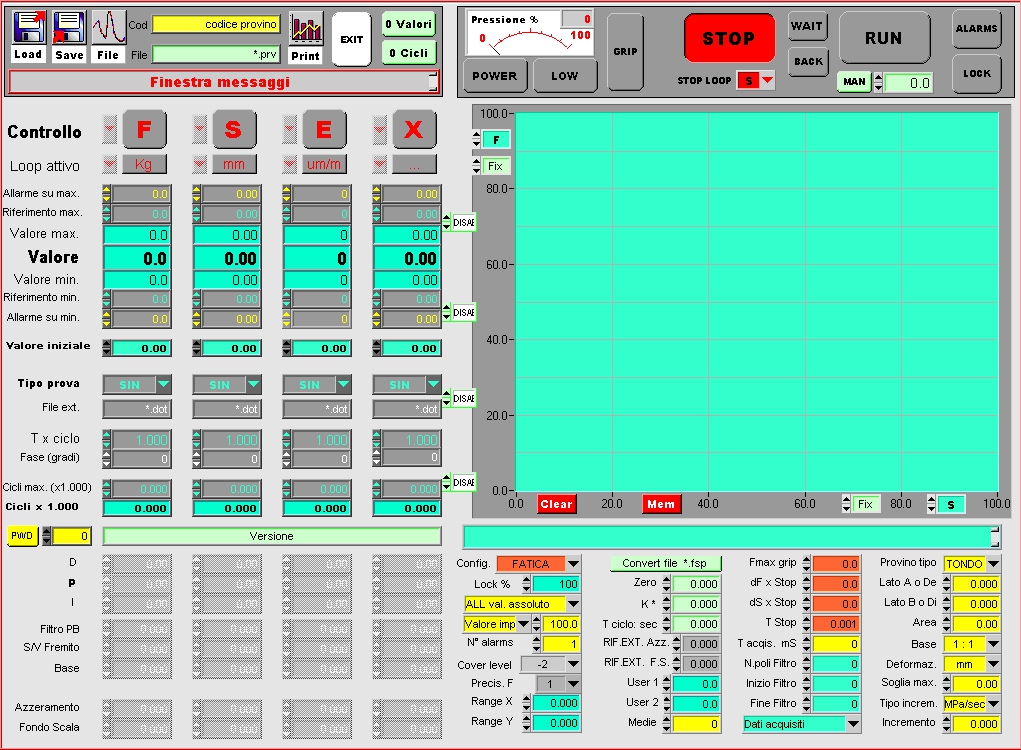

Bench for Static, Dynamic, and Fatigue Tests - screenshot of the main window, in which each channel can be programmed
Screenshot of a realtime view

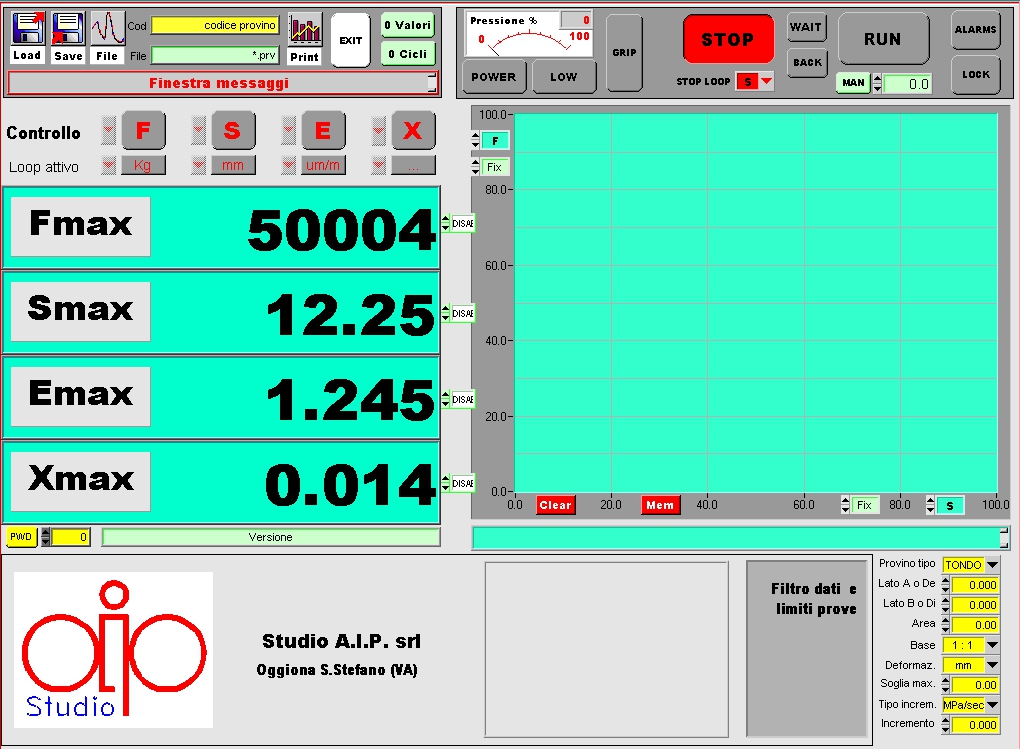

Test Bench for Static, Dynamic, and Fatigue Tests - screenshot of one among the several possible realtime views
Screenshot del software per generazione segnali

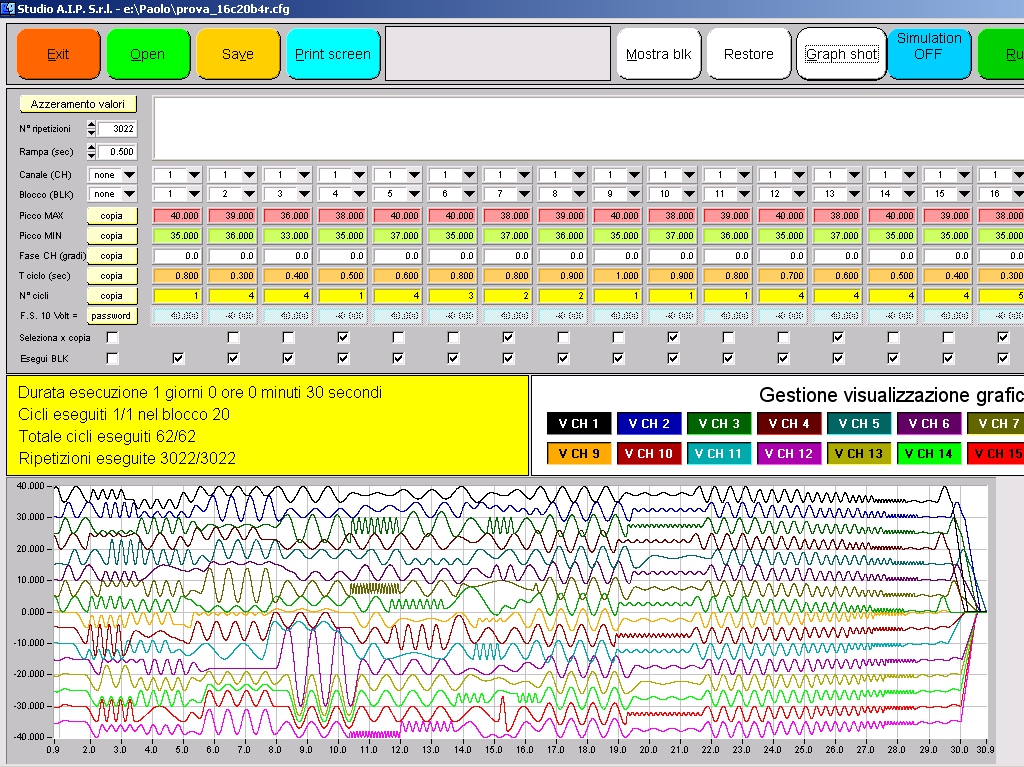

Generator of 16 independent signals, which can be programmed in up to 20 blocks emitted in parallel channels. Each signal is programmable in repeatable blocks.
